- Flexible, conical steel helix moulded in flexible thermoplastic rubber.
- Reduced-size ¼ λ helical antenna whip.
- Optimum performance compared to physical dimensions.
- Delivered factory tuned and tested to ensure minimum VSWR.
- Especially designed for Motorola GP 300, GP 344, GP 360 and
GP 388 (150 MHz band) etc.

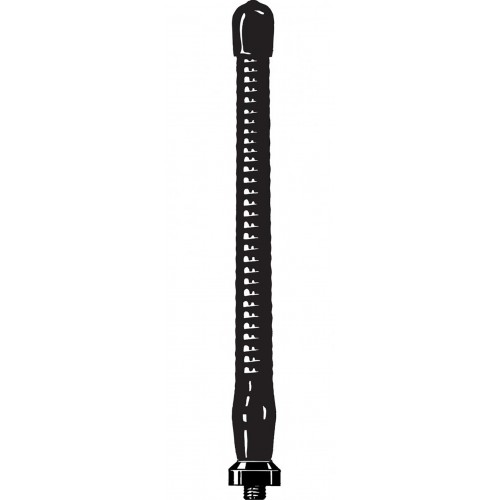

Handportable AntennasHX 2/...-GP 300
Helical Antenna for Portable Equipment in the 2 m Band
Description
Specifications
| Electrical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
Diagram and Mounting

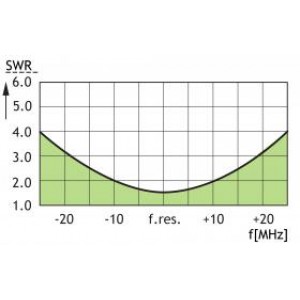

TYPICAL SWR CURVES
Ordering Designations
| Model | Product No. | Frequency | |
|---|---|---|---|
| HX 2/l-GP 300 | 140000136 | 144 - 160 MHz | |
| HX 2/m-GP 300 | 140000128 | 152 - 168 MHz | |
| HX 2/h-GP 300 | 140000127 | 160 - 175 MHz |

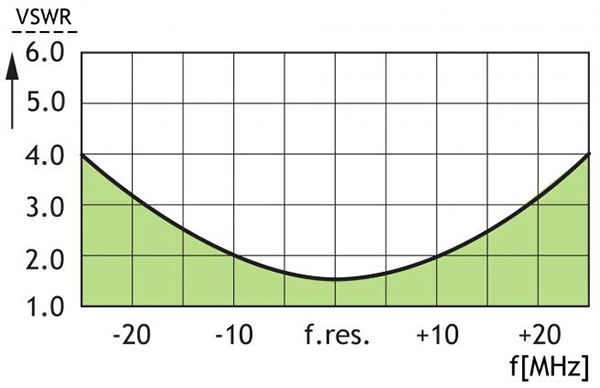

Typical VSWR curve
