- Flexible skirt dipole antenna element built into an elastic shroud of hard-wearing and weather- and shockproof plastics.
- “Elevated feed” ½ λ dipole antenna element – groundplane independent.
- High gain and efficient decoupling from the portable equipment due to half-wave design.
- 3 dB gain (typ.) compared to a ¼ λ antenna whip on the same equipment.
- Highest quality materials in a modern “High-Tech” design.
- Delivered factory tuned to customer’s specified frequency.
- Provided with TNC(m) connector.
Handportable AntennasELF 2500/...-TNC
“Elevated-Feed” ½ λ Dipole Antenna for Portable Equipment in the 2500 MHz Band
Description
Specifications
| Electrical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
Diagram and Mounting

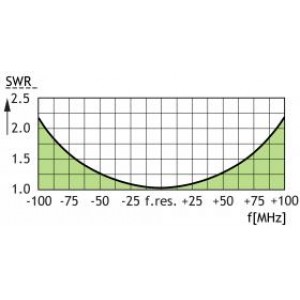

TYPICAL SWR CURVES
Ordering Designations
| Model | Product No. | Frequency | |
|---|---|---|---|
| ELF 2500/2350-TNC(m) | 140000250 | 2270 - 2430 MHz | |
| ELF 2500/2400-TNC(m) | 140000251 | 2320 - 2480 MHz | |
| ELF 2500/2450-TNC(m) | 140000252 | 2370 - 2530 MHz |
