CXL 350-1
Electrical
Model

CXL 350-1/…
Frequency 350 – 380 MHz.
Max. Input Power 150 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane

80 °
Impedance 50 Ω
Gain

0 dBd (2.0 dBi)
VSWR

< 1.5:1
Bandwidth

30 MHz
HCM Code(s)

HCM000ND00, 040DE00
Environmental
Operating temperature range

-30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66
Mechanical
Connection(s) N(f)
Materials

Shroud: Polyurethane-coated glass fibre
Mounting bracket:  Black Chromed brass
Historic Brand Amphenol Procom
Dimensions

950 mm (l) x 23.1 mm (dia.)
Wind Load

31 N (160 km/h / 99.42 mph)
Weight

Approx. 0.44 kg / 0.97 lb.
Mounting

On 1″ RG (G1″ – 11) threaded water pipe or on optional mounting brackets
(see mounting bracket and accessories)

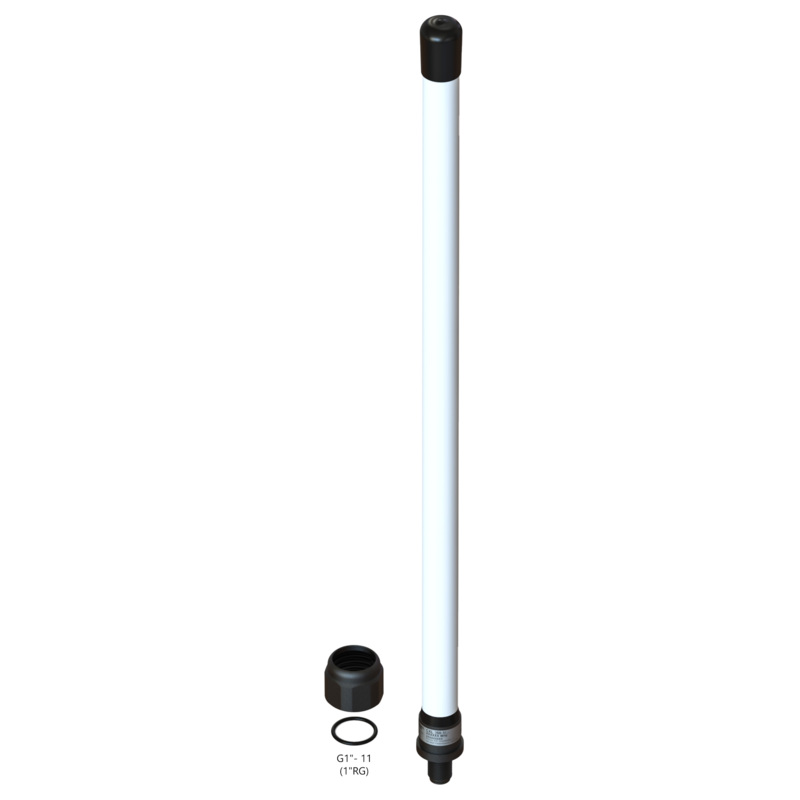

  • This rod-type UHF antenna is developed for use onboard ships as well as on masts and covers the 350-380 MHz band.
  • The 1” revolving nut mounting system makes it possible to mount the antenna in the mast, in the auxiliary mast or on the cross-beam.
  • By means of Procom’s flange mount type “FLG”, it can easily be mounted even on the rooftop.
  • The antenna is a ½ λ design and this means that it needs neither loading coils, groundplane, radials nor other auxiliary arrangements.
  • Bear in mind that the higher the antenna is mounted the better coverage ingress.
  • Avoid mounting the antenna parallel with or in the neighbourhood of other metal parts, such as masts, supporting wires etc.
  • Free mounting and as high as possible is most preferable, otherwise the VSWR and the radiation diagram will be influenced.
  • For a wide variety of endpoint applications.
  • The antenna is a grounded radiator antenna and therefore it shows a DC-short across the coaxial cable.
  • A cylindrical glass fibre tube completely encloses the carefully designed radiating element to assure long dependable service in all climates.

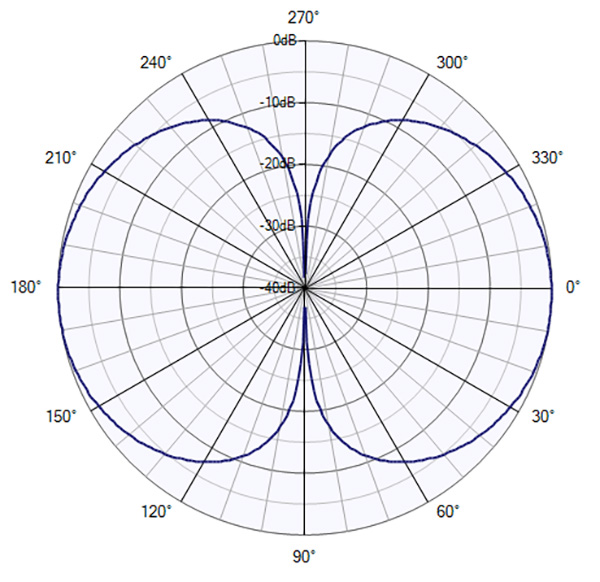

TYPICAL RADIATION PATTERN (E-PLANE)

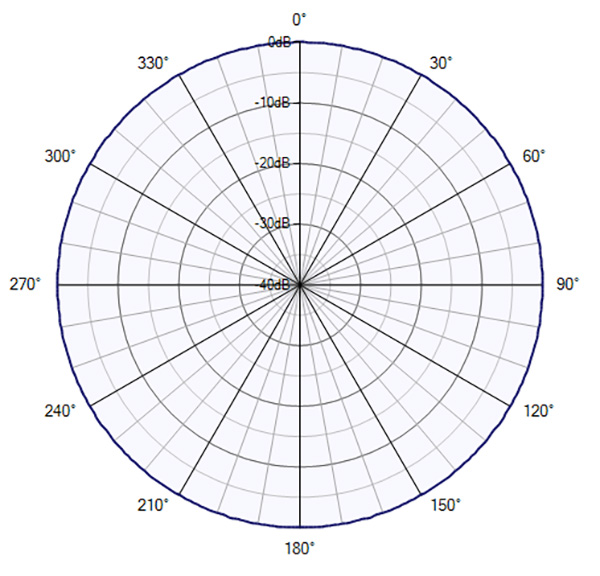

TYPICAL RADIATION PATTERN (H-PLANE)

ACCESSORIES (TO BE ORDERED SEPARATELY)

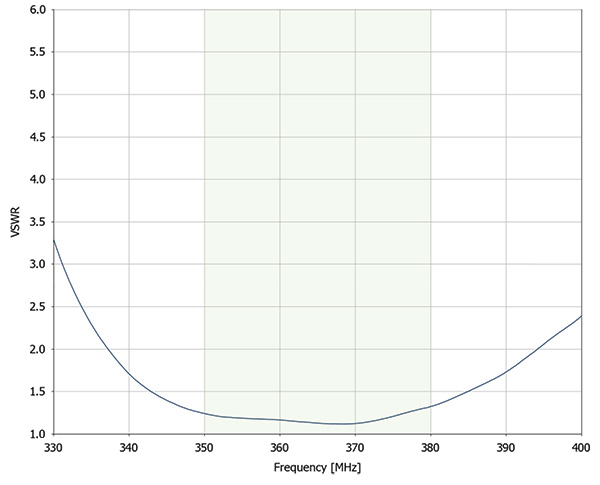

Typical VSWR curve

Model Product No. Add To Quote
Unity Gain Base Station and Marine UHF Antenna 100000988
