XPA U2-L4-2.0

HybridLine Panel Antenna with Dual band LTE450 and LTE700/800/850 | X-Pol | 72° | 12 dBi / 14 dBi | Remote Electrical Tilt

Find Out More
View Variations
Data Sheet
Declaration Of Conformity

Other Files

XPA U2-L4-2.0

Quickly identify the correct ordering code.

Frequency
XPA U2-L4-2.0
Electrical
Model XPA U2-L4-2.0
Frequency
380 – 470 MHz (R1)698 – 960 MHz (R2 R3)
Max. Input Power
400 W300 W
Connectors Per Band
24
Polarisation
±45°±45°
Electrical Tilt
0 – 10° RET AISG2 – 12° RET AISG
Impedance 50 Ω
Inter-band Isolation
> 27 dB> 27 dB
Intra-band Isolation
> 25 dB> 25 dB
VSWR
< 1.5:1< 1.5:1
Cross Polar Discrimination
> 26 dB> 26 dB
Passive Intermodulation IM3 (2 x 20 W carrier) : < -153 dBc
Environmental
Wind Load (150 km/hr) Frontal:705N
Lateral: 307N
Rearside: 741N
Maximum 1270N @ 110/250°
Operating temperature range -40 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP56
Mechanical
Connection(s) 6 x 4.3/10(f) in antenna base
Radome Material / Colour GRP Extrusion
RAL 7035 Light Grey
Historic Brand Amphenol Procom
Dimensions 1998 x 549 x 220 mm /
78.66 x 21.61 x 8.66 in.
Weight 36 kg / 79.32 lbs
  • This new dual band antenna is a part of our new “HybridLine” cross polarized panel antennas series covering LTE450 and LTE700/800/850. The antenna has been designed to offer a very stable radiation pattern over two separate bands of operation. This approach enables the use of the antenna for multi carrier operation, and for use where site sharing is also a requirement. The antenna features carefully selected high quality components throughout including the main housing of the antenna being made from corrosion resistant marine grade aluminium and sustainable glass fiber shroud. The antennas compact design gives very low wind loading characteristics, and combined with the low weight of the antenna, aids in the reduction of structural loading. The horizontal beamwidth of the antenna has been carefully chosen to suit tri-sector installation in combined or multi-sector configurations.
  • Dual band Panel Antenna for LTE450 and LTE700/800/850.
  • 2 ports on LTE450 and 4 ports on LTE700/800/850.
  • AISG Remote electrical tilt (RET) on both bands.
  • Horizontal Beamwidth optimised for tri-sector configuration.
  • Fully enclosed / extruded glass fiber shroud for improved weather protection.
  • Patented internal RET actuator adds no additional length to the antenna.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Frequency Add To Quote

XPA U2-L4-2.0

 Contact for availability (Ref: 70) 380 – 470 MHz

Login required

You need to be logged in into your account to view downloadable documents.

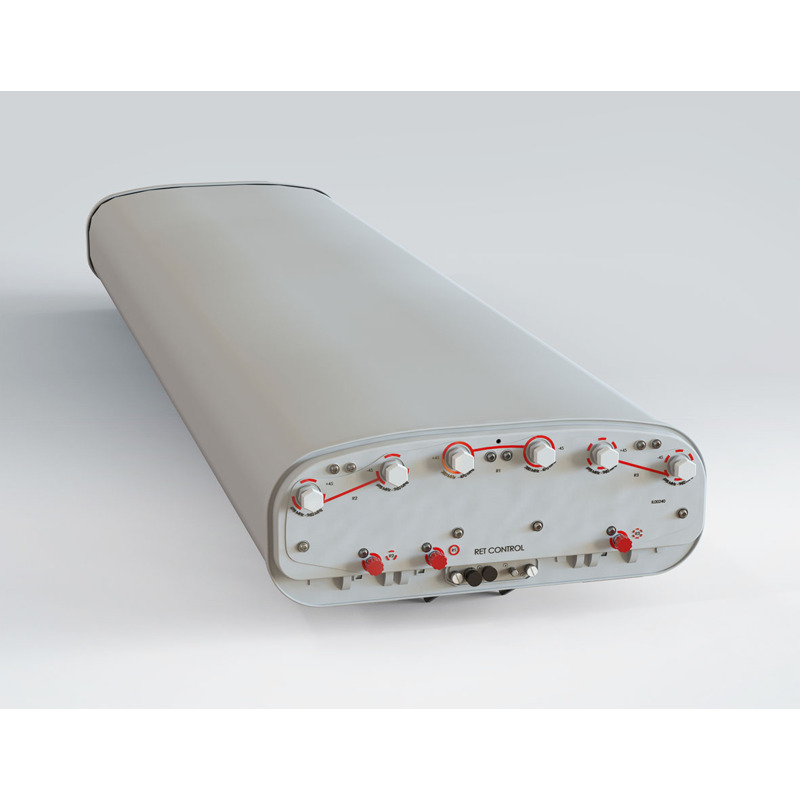

Bottom View of Antenna
