S.EFX-405

Omni AntennasS.EFX-405

Glassfibre end fed dipole antenna 380 - 430 MHz

Description

  • A rugged and durable UHF omni antenna designed for Telemetry, Paging and PMR/Trunked Radio applications.
  • Housed inside a a high-strength glass fibre shroud, the antenna includes an integrated mounting clamp allowing easy installation on poles or horizontal rails.
  • The robust antenna design ensures reliable operation in harsh environmental conditions.
  • Former Skymasts brand product.

Specifications

Electrical
Model S.EFX-405
Frequency 380 - 430 MHz
Max. Input Power 100 W
Omni Deviation < ± 0.5 dB
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.5:1
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Mechanical
Radiating Element(s) 11 mm dia brass tube
Connection(s) N(f) on 500mm RG213/U cable
Radiator Feed PTFE dielectric coaxial cable
Radome Material / Colour GRP tube grey, 26mm dia.
Length Approx. 740 mm / 29.13 in.
Wind Load 25 N (160 km/h)
Corrosion Protection Surtec 650
Weight Approx. 0.6 kg / 1.32 lb.
Mounting Integral mounting clamp to fit 38 - 50 mm dia. pipe or horizontal rail

Diagram and Mounting

RADIATION PATTERNS

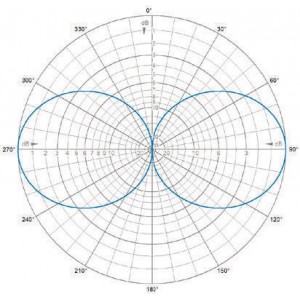

E-Plane | 405 MHz E-Plane | 405 MHz

MOUNTING & DIAGRAMS

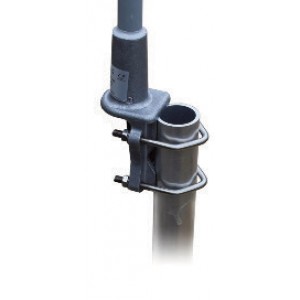

Antenna Mounting Antenna Mounting

RADIATION PATTERNS

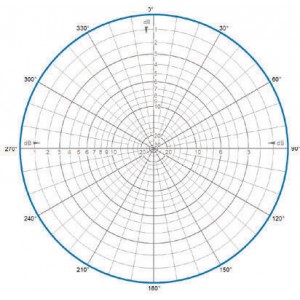

H-Plane | 405 MHz H-Plane | 405 MHz

Ordering Designations

Model Product No. Frequency
Glassfibre end fed dipole antenna S.EFX-405 380 - 430 MHz
