W360-17-X

Omni AntennasW360-17-X

Wideband omni 1710-2170MHz, 11.8dBi

Description

The W360 Series colinear is designed for demanding applications where a durable and high performance antenna is required. The centre fed dipole design and feed network gives a stable radiation pattern across a wide bandwidth, and allows tilted beam designs to be effectively employed without large pattern distortions. High quality materials and manufacturing techniques are employed to ensure that the antenna has excellent intermodulation performance & wide bandwidth characteristics for multi-channel trunked radio communication systems.
• Former Jaybeam brand product.

Specifications

Electrical
Frequency 1710 - 2170 MHz
Max. Input Power 250 W
Polarisation Vertical
3 dB Beamwidth, E-Plane 5 °
3 dB Beamwidth, H-Plane Omni ±3dB
Electrical Tilt 0°, 2°, 5°, 6°
Impedance 50 Ω
Gain 9.7 dBd (11.9 dBi)
VSWR < 1.5:1
Passive Intermodulation -153dBc (3rd Order, 2 x Tx @ 37dBm)
Lightning Protection Direct ground: lightning finial at upper end
Mechanical
Radiating Element(s) PTFE printed circuit
Connection(s) 7/16 DIN(f)
Mounting Section Aluminium tube 400 x 80mm
Radome Material / Colour GRP tube white, 70mm dia.
Dimensions 1768 x 70 mm
Wind Load 180 N (160km/h)
Weight 8 kg / 17.64 lb
Mounting Bracket XSL51201 - 50-114 mm
(Ordered Separately)
Environmental
Operating temperature range -40 to 60 °C
Survival Wind Speed 200 km/h
Humidity up to 100% condensing

Diagram and Mounting

RADIATION PATTERNS

E-Plane | 1800 MHz | 0° E-Plane | 1800 MHz | 0°

RADIATION PATTERNS

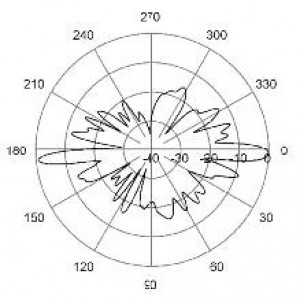

E-Plane | 1800 MHz | 2° E-Plane | 1800 MHz | 2°

RADIATION PATTERNS

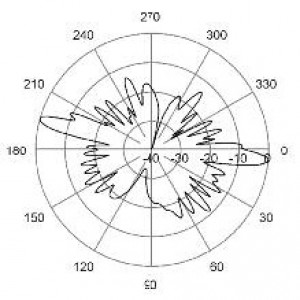

E-Plane | 1800 MHz | 5° E-Plane | 1800 MHz | 5°

RADIATION PATTERNS

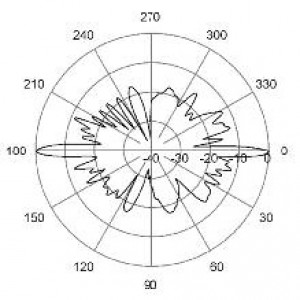

E-Plane | 1900 MHz | 0° E-Plane | 1900 MHz | 0°

RADIATION PATTERNS

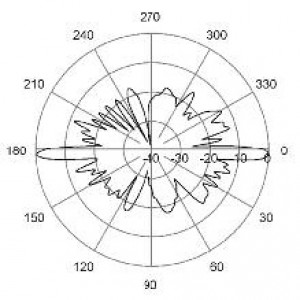

E-Plane | 1900 MHz | 2° E-Plane | 1900 MHz | 2°

RADIATION PATTERNS

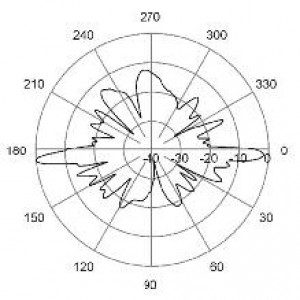

E-Plane | 1900 MHz | 5° E-Plane | 1900 MHz | 5°

RADIATION PATTERNS

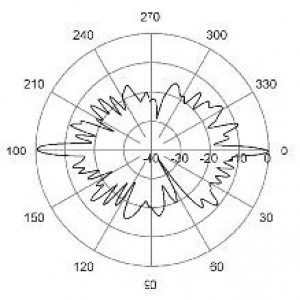

E-Plane | 2100 MHz | 0° E-Plane | 2100 MHz | 0°

RADIATION PATTERNS

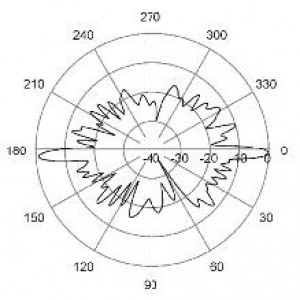

E-Plane | 2100 MHz | 2° E-Plane | 2100 MHz | 2°

RADIATION PATTERNS

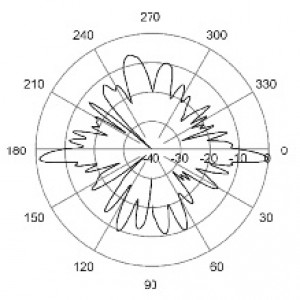

E-Plane | 2100 MHz | 5° E-Plane | 2100 MHz | 5°

RADIATION PATTERNS

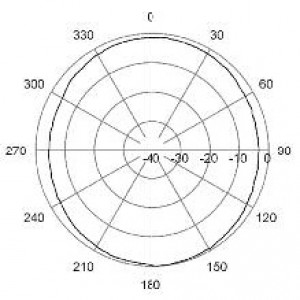

H-Plane | 1800 MHz H-Plane | 1800 MHz

RADIATION PATTERNS

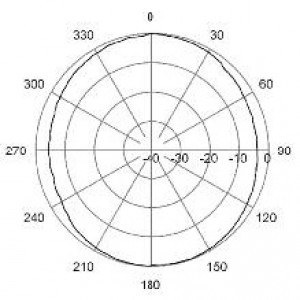

H-Plane | 1900 MHz H-Plane | 1900 MHz

RADIATION PATTERNS

H-Plane | 2100 MHz H-Plane | 2100 MHz

Ordering Designations

Model Product No. Description Frequency
Wideband omni 1710-2170MHz, 11.8dBi W360-17-0 0° Electrical Tilt 1710 - 2170 MHz
Wideband omni 1710-2170MHz, 11.8dBi W360-17-2 2° Electrical Tilt 1710 - 2170 MHz
Wideband omni 1710-2170MHz, 11.8dBi W360-17-5 5° Electrical Tilt 1710 - 2170 MHz
Wideband omni 1710-2170MHz, 11.8dBi W360-17-6 6° Electrical Tilt 1710 - 2170 MHz
Accessories
Bracket for W360 Series XSL51201
