CXL 900-8C

LTE 4G/5G AntennasCXL 900-8C

Sturdy, 8 dBd Gain Base Station Antenna for the 900 MHz Band

Description

  • CXL 900-8C/... is a sturdy, 8 dBd, vertically polarized, omnidirectional base station antenna, which covers the 824 - 960 MHz band in 2 models.
  • The antenna is provided with our “C” mast bracket, which is a universal, epoxy-coated mounting bracket made of non-corrosive aluminium. The accompanying U-bolts and fittings are made of stainless steel.
  • The antenna can be mounted on 27 to 65 mm dia. mast tubes and it is possible to lead the cable either along the inside or on the outside of the mast tube.
  • The phasing of the radiating elements is carefully adjusted to yield maximum gain in the horizontal plane, with the level of the sidelobes reduced to a minimum. Special emphasis has been laid on obtaining a large bandwidth both in relation to VSWR and gain.
  • The broad-banded antenna element is completely enclosed in a glass fibre shroud, which will ensure performance undisturbed by corrosive environments.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • This antenna is constructed to ensure long dependable service in all climates.

Specifications

Electrical
Model CXL 900-8C/...
Frequency 824 - 960 MHz (2 models)
Antenna Type Collinear, broad-band
Max. Input Power 150 W
Omni Deviation < ± 1 dB
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, E-Plane 8°±1°
3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
Gain 8 dBd (10.2 dBi)
VSWR < 1.5:1
Bandwidth 70 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 004DE40
Mechanical
Connection(s) N(f)
Materials Radome : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
Colour White (RAL 9003)
Wind Area 0.088 sq. m / 0.947 sq. ft (h-model)
Wind Load 125 N (160 km/h) (h-model)
Height 2445 mm / 96.26 in. (h-model)
Weight 3.5 kg / 7.72 lb. (h-model)
Mounting On 27 - 65 mm / 1.06 - 2.56 in. dia. mast tube
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h (h-model)
Ingress Protection IP56

Diagrams and Mounting

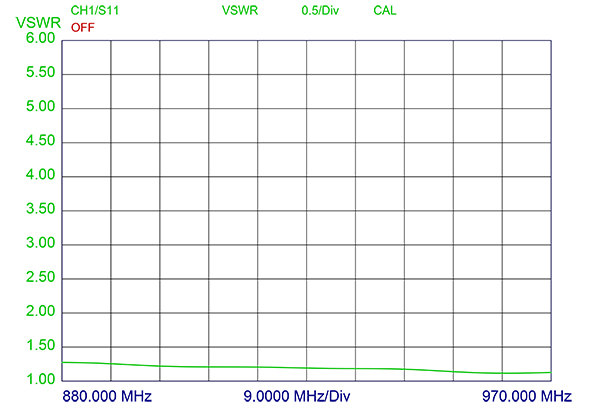

Typical VSWR curve

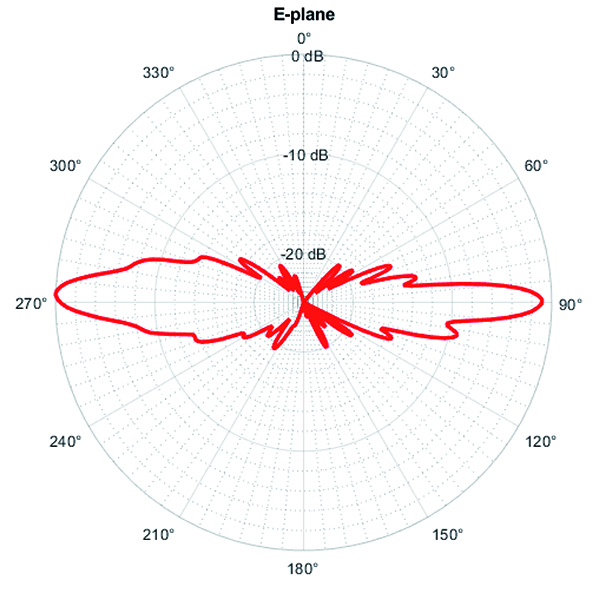

Typical Radiation Pattern (E-Plane)

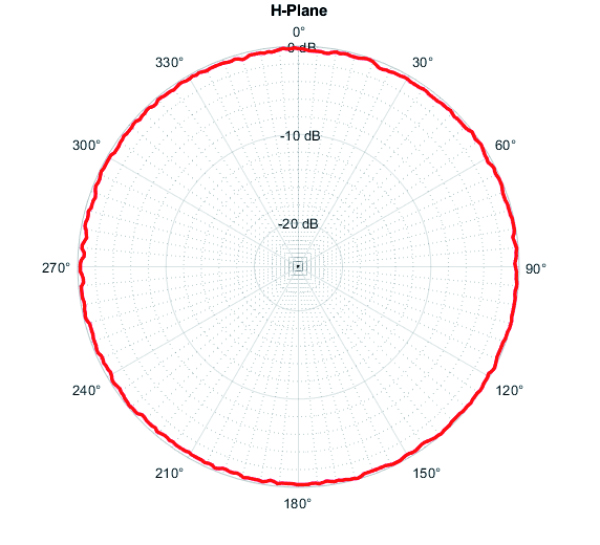

Typical Radiation Pattern (H-Plane)

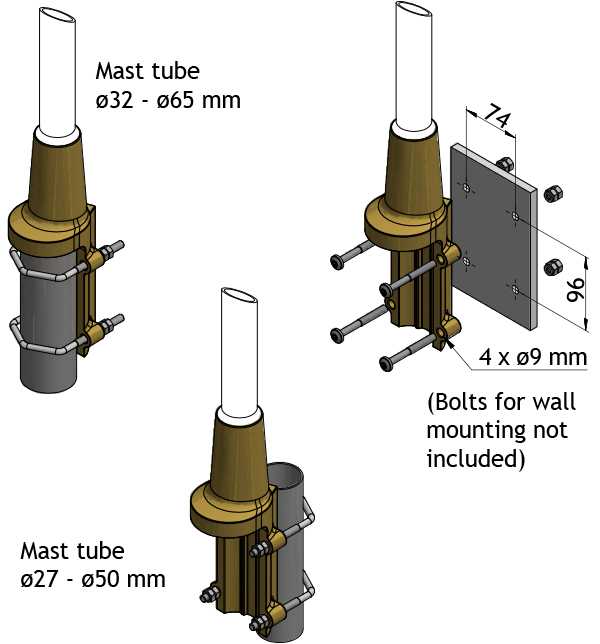

Multi-Purpose Mounting Bracket

Ordering Designations

Model Product No. Frequency
CXL 900-8C/l 100000790 824 - 894 MHz
CXL 900-8C/h 100000757 890 - 960 MHz
