CXL 2400-8LW/...

Marine AntennasCXL 2400-8LW/...

8 db Omnidirectional Base Station and Marine Antenna for the 2400 MHz Band

Description

  • Vertically polarized, omnidirectional base station and marine antenna.
  • Approximately 8 dBd gain.
  • Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • To be mounted on vertical or horizontal mast tubes, 16 to
    54 mm in outer diameter.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • Large bandwidth with respect to both VSWR and gain.
  • Highly suitable for duplex operation with large spacing between the Tx and the Rx frequencies.
  • The antenna element is sealed in a high-quality, conical glass fibre tube.
  • All metal parts in the antenna are DC-grounded to reduce the noise caused by atmospherical discharge. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 2400-8LW/… is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

Specifications

Electrical
Model CXL 2400-8LW/...
Frequency Models within 2300 - 2660 MHz
Antenna Type Collinear, broad-band
Max. Input Power 100 W
Polarisation Vertical
3 dB Beamwidth, E-Plane 7 °
3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
Gain 8 dBd (10.2 dBi)
VSWR < 2.0:1
Bandwidth l and m model : 100 MHz
h-model : 130 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 004DE60
Mechanical
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
U-bolt and fittings : Stainless steel
Colour White (RAL 9003)
Wind Area 0.037 sq. m / 0.40 sq. ft
Wind Load 46 N (160 km/h)
Dia. At Top End 21 mm / 0.83 in.
Dia. At Bottom End 23 mm / 0.91 in.
Height Approx. 1150 mm / 45.28 in.
Weight Approx. 0.9 kg / 1.98 lb.
Mounting On 16 to 54 mm / 0.63 to 2.13 in. dia. mast tube
Environmental
Operating temperature range -30 °C to +70 °C
Ingress Protection IP66

Diagram and Mounting

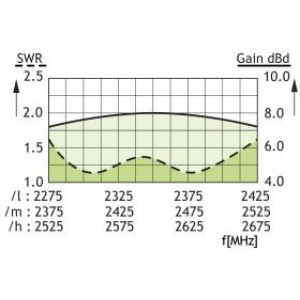

TYPICAL GAIN AND SWR CURVES

TYPICAL RADIATION PATTERN (E-PLANE)

TYPICAL RADIATION PATTERN (H-PLANE)

MULTI-PURPOSE MOUNTING BRACKET

PLEASE NOTE

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.

Ordering Designations

Model Product No. Frequency
CXL 2400-8LW/l 100000170 2300 - 2400 MHz
CXL 2400-8LW/m 100000172 2400 - 2500 MHz
CXL 2400-8LW/h 100000168 2530 - 2660 MHz

Please Note

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.
