CXL 2-2C

Omni AntennasCXL 2-2C

Unity Gain, Broad Banded Base Station Antenna for the 160 MHz Band

Description

  • CXL 2-2C is a 0 dBd gain, omnidirectional base station antenna.
  • The antenna covers the complete band: 144 - 175 MHz.
  • CXL 2-2C is designed for fixation on supporting tubes with outer diameter between 27 mm and 65 mm.
  • The construction of the mount makes it possible to lead the cable either inside or along the outside of the mast tube.
  • A glass fibre tube completely encloses the carefully designed radiating element to ensure long dependable service in all climates.
  • Atmospherical discharges are immediately led to ground as all metal parts are DC-grounded (consequently, the antenna shows a DC-short across the coaxial cable).
  • This antenna is used where reliability is of utmost importance. A long lifetime has been taken into consideration when designing this antenna – it is sturdy and strong.

Specifications

Electrical
Model CXL 2-2C
Frequency 144 - 175 MHz
Antenna Type Coaxial dipole, broad-banded
Max. Input Power 600 W
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.5:1
Bandwidth 31 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 040DE00
Mechanical
Connection(s) N(f)
Materials Radome : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
Colour White (RAL 9003)
Wind Area 0.091 sq. m / 0.98 sq. ft
Wind Load 115 N (160 km/h)
Height Approx. 1750 mm / 68.90 in.
Weight Approx. 3.0 kg / 6.61 lb.
Mounting On 27 - 65 mm dia. / 1.06 - 2.56 in. mast tube
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP56

Diagram and Mounting

MULTI-PURPOSE MOUNTING BRACKET

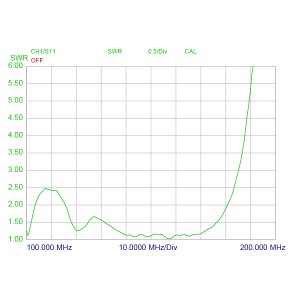

TYPICAL GAIN AND SWR CURVES

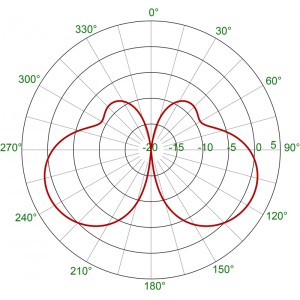

TYPICAL RADIATION PATTERN 144 MHz (E-PLANE)

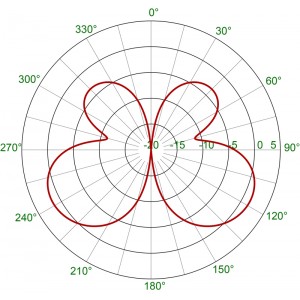

TYPICAL RADIATION PATTERN 158 MHz (E-PLANE)

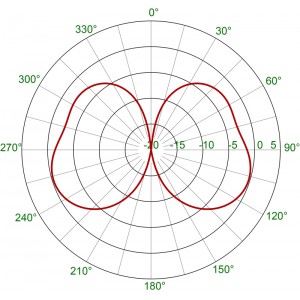

TYPICAL RADIATION PATTERN 175 MHz (E-PLANE)

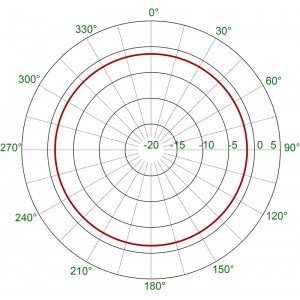

TYPICAL RADIATION PATTERN 175 MHz (H-PLANE)

Ordering Designations

Model Product No.
CXL 2-2C 100000087
