Broadband 3 dB glassfibre colinear 869 MHz

Description

  • A rugged and durable UHF colinear antenna designed for Telemetry, Paging and PMR/Trunked Radio applications.
  • Housed inside a a high-strength glass fibre shroud, the antenna includes an integrated mounting clamp allowing easy installation on poles.
  • The robust antenna design ensures reliable operation in harsh environmental conditions.
  • Former Skymasts brand product.

Specifications

Electrical
Model S.C3B-869
Frequency 859 - 879 MHz
Max. Input Power 100 W
Omni Deviation < ± 0.5 dB
Polarisation Vertical
3 dB Beamwidth, E-Plane 33 °
3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
Gain 3 dBd (5.2 dBi)
VSWR < 1.5:1
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Mechanical
Radiating Element(s) 11 mm dia brass tube
Connection(s) N(f) on 500mm RG213/U cable
Radiator Feed PTFE dielectric coaxial cable
Radome Material / Colour GRP tube grey, 26mm dia.
Length Approx. 1000 mm / 39.37 in.
Wind Load 35 N (160 km/h)
Corrosion Protection Black anodise
Weight Approx. 0.65 kg / 1.43 lb.
Mounting Integral mounting clamp to fit 38 - 50 mm dia. pipe or horizontal rail

Diagram and Mounting

RADIATION PATTERNS

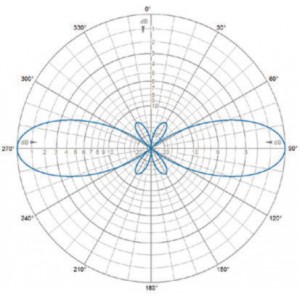

E-Plane | 869 MHz E-Plane | 869 MHz

MOUNTING & DIAGRAMS

Antenna Mounting Antenna Mounting

RADIATION PATTERNS

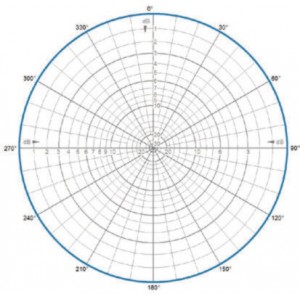

H-Plane | 869 MHz H-Plane | 869 MHz

Ordering Designations

Model Product No. Frequency
Broadband 3 dB glassfibre colinear 869 MHz S.C3B-869 859 - 879 MHz
