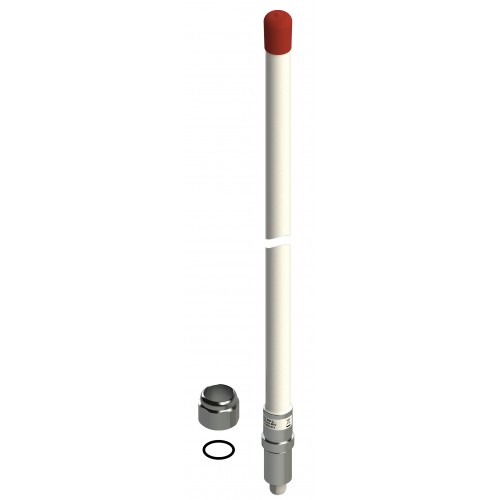

CXL 900-3

Marine AntennasCXL 900-3

2.7 dBd Gain, Base Station and Marine 900 MHz Antenna for Mounting on Threaded 1” Water Pipe

Description

  • CXL 900-3 is a 2.7 dBd, vertically polarized, omnidirectional rod-type base station and marine antenna which covers the 900 MHz band in three models.
  • The 1” revolving nut mounting system is standard throughout the base station or maritime sector, and several different mounting brackets are available, making it possible to install the antenna either on the masthead using FLG or SMR 2, side-mounted on the mast (SMR 1), or mounted on a cross-beam (FLG). Also, the antenna can be mounted on deck or rooftop by means of the FLG. (See accessories).
  • CXL 900-3 is especially suitable for use in connection with 900 MHz CELLULAR systems – making it possible to extend the normally land-based cellular telephone system for maritime mobile service as well.
  • The phasing of the radiating elements is adjusted to yield maximum gain in the horizontal plane, with the level of the sidelobes reduced to a minimum.
  • The higher the antenna is mounted, the better coverage. Avoid mounting the antenna parallel to or in the neighbourhood of other metal parts, such as masts, supporting wires etc., otherwise the VSWR and the radiation pattern may be strongly influenced.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • A conical glass fibre tube completely encloses the carefully designed radiating element to ensure long dependable service in all climates.

Specifications

Electrical
Model CXL 900-3/...
Frequency Models within 824 - 960 MHz
Antenna Type Collinear, broad-band
Max. Input Power 100 W
Polarisation Vertical
3 dB Beamwidth, E-Plane 36 °
3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
Gain 2.7 dBd (4.9 dBi)
VSWR < 1.5:1
Bandwidth 70 - 80 MHz
HCM Code(s) HCM000ND00, 018DE25
Mechanical
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Chromed brass
Colour White (RAL 9003)
Wind Area 0.014 sq. m / 0.15 sq. ft
Wind Load 18 N (160 km/h)
Dia. At Top End 23 mm / 0.9 in.
Dia. At Bottom End 23 mm / 0.9 in.
Height Approx. 630 mm / 24.80 in.
Weight Approx. 0.4 kg / 0.88 lb.
Mounting On 1" RG (G1" - 11) threaded water pipe or on optional mounting brackets (see accessories )
Environmental
Operating temperature range -30 °C to +70 °C
Ingress Protection IP66

Ordering Designations

Model Product No. Frequency
CXL 900-3/l 110000424 824 - 894 MHz
CXL 900-3/m 110000456 870 - 950 MHz
CXL 900-3/h 110000425 890 - 960 MHz

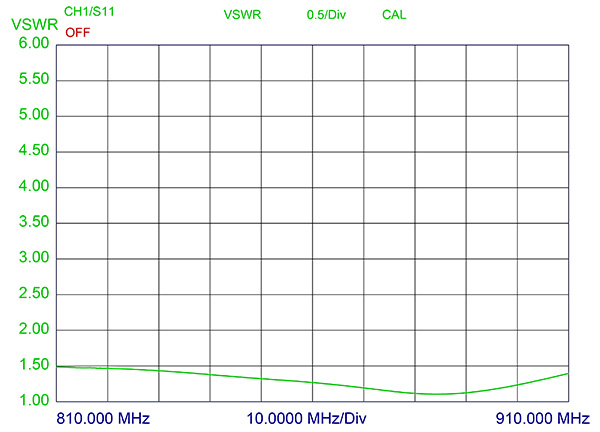

Typical VSWR curve

CXL 900 3 VSWR Curve

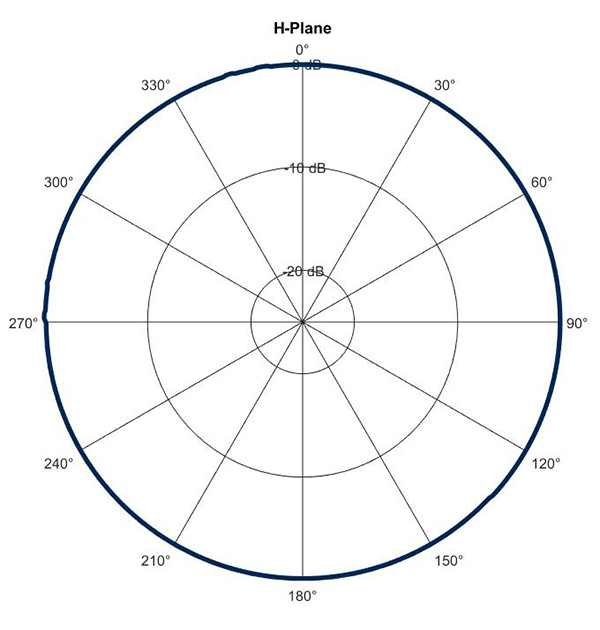

Typical Radition Pattern (H-plane)

CXL 900 3 H plane

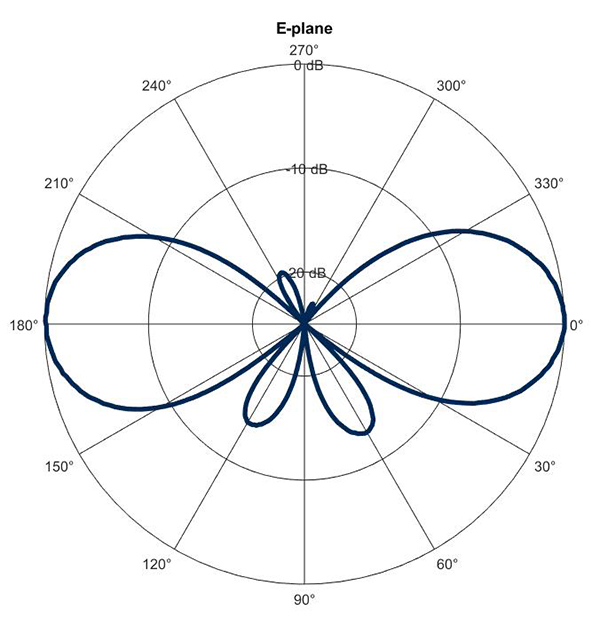

Typical Radition Pattern (E-plane)

CXL 900 3 E plane

Accessories (To be ordered separately)

Bjaelke acc samlet GB 600x
