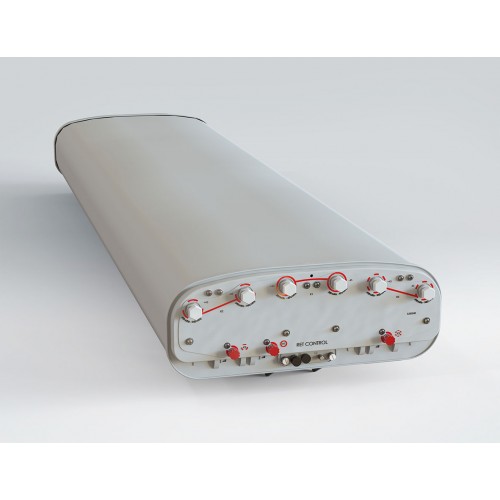

Panel AntennasXPA U2-L4-2.7

HybridLine Panel Antenna with Dual band LTE450 and LTE700/800/850 | X-Pol | 72° | 13 dBi / 16.8 dBi | Remote Electrical Tilt

Description

This new dual band antenna is a part of our new “HybridLine” cross polarized panel antennas series covering LTE450 and LTE700/800/850. The antenna has been designed to offer a very stable radiation pattern over two separate bands of operation. This approach enables the use of the antenna for multi carrier operation, and for use where site sharing is also a requirement. The antenna features carefully selected high quality components throughout including the main housing of the antenna being made from corrosion resistant marine grade aluminium and sustainable glass fiber shroud. The antennas compact design gives very low wind loading characteristics, and combined with the low weight of the antenna, aids in the reduction of structural loading. The horizontal beamwidth of the antenna has been carefully chosen to suit tri-sector installation in combined or multi-sector configurations.

Dual band Panel Antenna for LTE450 and LTE700/800/850.
2 ports on LTE450 and 4 ports on LTE700/800/850.
AISG Remote electrical tilt (RET) on both bands.
Horizontal Beamwidth optimised for tri-sector configuration.
Fully enclosed / extruded glass fiber shroud for improved weather protection.
Patented internal RET actuator adds no additional length to the antenna.

Specifications

Electrical

Model

XPA U2-L4-2.7

Frequency

380 - 470 MHz (R1)

698 - 960 MHz (R2, R3)

Max. Input Power

400 W

300 W

Connectors Per Band

Polarisation

±45°

Electrical Tilt

0 - 10°, RET AISG

2 - 12°, RET AISG

Impedance

50 Ω

Inter-band Isolation

> 27 dB

Intra-band Isolation

> 25 dB

VSWR

< 1.5:1

Cross Polar Discrimination

> 26 dB

Passive Intermodulation

IM3 (2 x 20 W carrier) : < -153 dBc

Electrical Specifications, R1

Frequency

380 - 430 MHz

430 - 450 MHz

450 - 470 MHz

Gain

13.2 dBi ±0.7

13.7 dBi ±0.5

12.9 dBi ±1.0

Azimuth Beamwidth

74.2° ±3.5

76.2° ±3.0

78.1° ±3.7

Elevation Beamwidth

16.5° ±2.0

14.7° ±1.0

14.0° ±1.0

Front-To-Back Ratio

>23 dB

>22 dB

Electrical Specifications, R2, R3

Frequency

698 - 806 MHz

790 - 862 MHz

880 - 960 MHz

Gain

15.3 dBi ±1.5

15.9 dBi ±1.1

15.6 dBi ±1.0

Azimuth Beamwidth

72.2° ±15.6

73.1° ±14.6

75.2° ±13.2

Elevation Beamwidth

8.7° ±1.0

8.1° ±1.0

6.9° ±0.8

Front-To-Back Ratio

>20 dB

Upper Sidelobe Suppression, peak to 20°

-14.1 dB

-14.7 dB

-14.3 dB

Mechanical

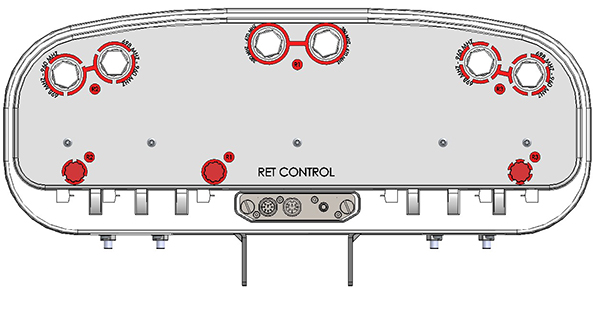

Connection(s)

6 x 4.3/10(f) in antenna base

Radome Material / Colour

GRP Extrusion
RAL 7035 Light Grey

Dimensions

2690 x 549 x 220 mm /
105.91 x 21.61 x 8.66 in.

Weight

45 kg / 99.21 lbs

Environmental

Operating temperature range

-40 °C to +70 °C

Survival Wind Speed

200 km/h

Ingress Protection

IP56

Wind Load (150 km/hr)

Frontal:958N
Lateral: 417N
Rearside: 1006N
Maximum 1725N @ 110/250°

RET System

RET Connections

2 x 8 Pin Circle Connector According To IEC 60130-9 And AISG.
Daisy Chain In : (m)
Daisy Chain Out : (f)
Pin 3 : RS485+
Pin 5 : RS485-
Pin 6 : 10~30V
Pin 7 : GND
connector (f) : 8 PINs
connector (m) : 5 PINs

Power Consumption

< 2 W (standby)
< 10 W (motor actived)

Supply Voltage, RET

10 - 30 V DC

Adjustment Time (Full Range)

≤ 90 s (typical, depending on Antenna type)

Angular Accuracy for shaft turn

Angular Accuracy ≤ 0.5 °

Protocols

Compliant With AISGV2.0 And 3GPP

Remote control

Can management from OMC, BTS/Node B

Daisy chaining method

Ready for daisy-chaining

Hardware Interface

RS485 and Power

Lifetime/Adjustment Cycles

> 20000

Ordering Designations

Model	Product No.
XPA U2-L4-2.7	Contact for availability
Accessories
Pole clamp set 48 - 115 mm dia.	0900181/00
Pole clamp set 70 - 150 mm dia.	0900182/00
Scissor Tilt Bracket Assembly	0900397/00
