Dipole Antennas7323127

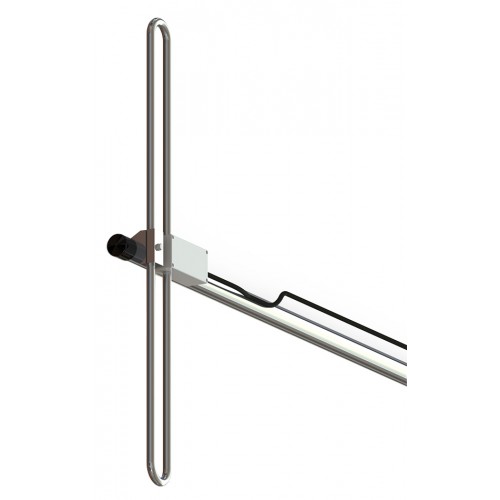

Heavy duty dipole 118 - 137 MHz

Description

  • A Heavy Duty, VHF Center Fed Dipole antenna for PMR/Trunked Radio, Broadcast and VHF Aircraft Band applications.
  • Multiple dipoles can be mounted on a tower and connected with a phasing harness to form a high gain, stacked array.
  • Produced to the highest quality standards, these robust antenna designs will insure reliable operation in harsh environmental conditions.
  • Former Jaybeam brand product.

Specifications

Electrical
Frequency 118 - 137 MHz
Max. Input Power 300 W
Polarisation Linear (Vertical or Horizontal)
3 dB Beamwidth, E-Plane 80 °
3 dB Beamwidth, H-Plane Will depend on mounting distance from mast.
Impedance 50 Ω
Gain 0 dBd (omni - will depend on mounting distance from mast)
VSWR < 1.5:1
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Mechanical
Connection(s) N(f) on 3m RG213/U cable
Materials Boom, 48 mm dia., aluminium
elements, 19.1 mm dia., aluminium
balun, epoxy potted, polyester enclosure
Dimensions 1495 x 1055 x 120 mm / 58.86 x 41.54 x 4.72 in.
Wind Load 168 N (160 km/h)
Weight Approx. 4.7 kg / 10.36 lb.
Alternate Mounting Bracket 0300064/00 + U-bolts to match mounting pipe diameter
(Ordered Separately)

Ordering Designations

Model Product No. Description Frequency
Heavy duty dipole 7323127-NF 'N' Female Input 118 - 137 MHz
Accessories
Cast aluminium cross clamp, circular 0300064/00
M8 x 50 mm (2") U-Bolts (1 Pair) 4884036/00
M8 x 75 mm (3") U-Bolts (1 Pair) 4884076/00
