Marine AntennasMA 450/...

End-fed ½ λ dipole marine and base station antenna.

Description

  • Black-chromed stainless steel whip.
  • Full-size, end-fed ½ λ antenna whip.
  • This base station and maritime UHF antenna is developed for use on board ships as well as on masts and thanks to the 1” revolving nut mounting system it can be mounted in the mast, in the auxilliary mast as well as on the cross-beam. By means of Procom’s flange mount it can also be mounted on deck or rooftop.
  • Bear in mind that the higher the antenna is mounted the better the coverage.
  • Avoid mounting the antenna parallel with and in the neighbourhood of other metal parts, such as mast, supporting wires etc. Free mounting and as high as possible is most preferable, otherwise the SWR and the radiation diagram will be influenced.
  • The antenna is a ½ λ design and this means that it needs neither loading coils, ground-plane, radials nor other auxiliary arrangements.

Specifications

Electrical
Model MA 450/...
Frequency Models within 380 - 460 MHz
Antenna Type ½ λ antenna
Max. Input Power 25 W
Polarisation Vertical
3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR ≤ 2 typ. ≤ 1.5
Bandwidth 20 MHz
Mechanical
Connection(s) N(f)
Materials Black-chromed stainless steel
Black-chromed brass
Colour Black
Height Approx. 400 mm / 15.75 in.
Weight Approx. 0.16 kg / 0.35 lb.

Diagram and Mounting

TYPICAL SWR CURVE

TYPICAL RADIATION PATTERN (E-PLANE)

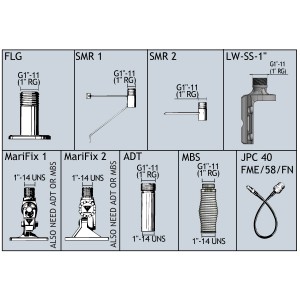

ACCESSORIES (to be ordered separately)

Ordering Designations

Model Product No.
MA 450/380-400 MHz 110000343
MA 450/410-430 MHz 110000454
MA 450/440-460 MHz 110000352
