CXL 380-470C

Omni AntennasCXL 380-470C

Unity Gain, Broad-Band Base Station Antenna for 380 - 470 MHz

Description

  • CXL 380-470C is a sturdy, 0 dBd, vertically polarized, omnidirectional base station antenna, which covers 380 - 470 MHz.
  • The antenna is provided with our “C” mast bracket, which is a universal, epoxy-coated mounting bracket made of non-corrosive aluminium. The accompanying U-bolts and fittings are made of stainless steel.
  • The antenna can be mounted on 27 to 65 mm dia. mast tubes and it is possible to lead the cable either along the inside or on the outside of the mast tube.
  • The broad-banded antenna element is completely enclosed in a glass fibre shroud, which will ensure performance undisturbed by corrosive environments.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • This antenna is constructed to ensure long dependable service in all climates.


Specifications

Electrical
Model CXL 380-470C
Frequency 380 - 470 MHz
Antenna Type Coaxial dipole, broad-banded
Max. Input Power 150 W
Polarisation Vertical
3 dB Beamwidth, E-Plane 60 °
3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 2.0:1
Bandwidth 90 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 030DE00
Mechanical
Connection(s) N(f)
Materials Radome : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
Colour White (RAL 9003)
Wind Area 0.042 sq. m / 0.45 sq. ft
Wind Load 49 N (160 km/h)
Height Approx. 1.1m / 43.31 in.
Weight Approx. 2.4 kg / 5.29 lb.
Mounting On 27 - 65 mm / 1.06 - 2.56 in. dia. mast tube
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP56

Diagram and Mounting

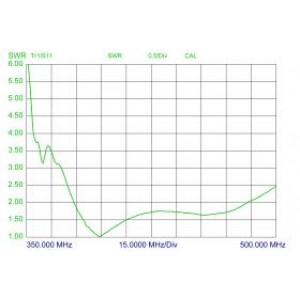

TYPICAL GAIN AND SWR CURVES

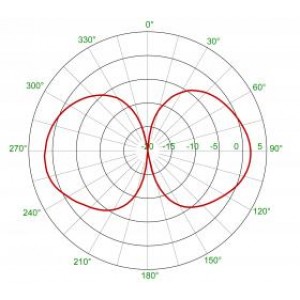

TYPICAL RADIATION PATTERN (E-PLANE)

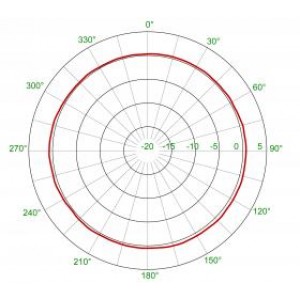

TYPICAL RADIATION PATTERN (H-PLANE)

MULTI-PURPOSE MOUNTING BRACKET

Ordering Designations

Model Product No.
CXL 380-470C 100000509
