GP 160 5/8

Marine AntennasGP 160 5/8

⅝ λ Ground-Plane Base Station and Marine Antenna for the 2 m Band

Description

  • The antenna is tunable (by cutting the radiator) within the frequency band 145…175 MHz.
  • GP 160 5/8 is a very sturdy construction which can stand mounting under extreme conditions. It is well suited for mounting on fishing vessels etc. and a good choice for base stations in the land mobile field.
  • GP 160 5/8 is a 1 dBd, vertically polarised omnidirectional base station and marine antenna.
  • The antenna is delivered adjusted to 145 MHz unless otherwise specified. It may, however, be delivered preadjusted for the maritime VHF band provided this is stated on the purchase order.
  • GP 160 5/8 is DC-grounded and antistatically protected as all metal parts are ground-connected. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The materials used are glass fibre and chromed brass.

Specifications

Electrical
Model GP 160 5/8
Frequency Tunable by cutting within: 145 - 175 MHz
Antenna Type Ground-plane
Max. Input Power 500 W
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
Gain 1 dBd (3.2 dBi)
Bandwidth 5 - 6 MHz dep. of the cf. freq. (VSWR ≤ 2)
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Mechanical
Connection(s) UHF(f) (fitting PL 259)
Materials Shroud : Polyurethane-coated glass fibre
Metal parts : Bright chromed brass
Colour White / bright chrome
Wind Area 0.028 sq. m / 0.30 sq. ft
Wind Load 35 N (160 km/h)
Dia. At Top End 5 mm / 0.20 in.
Dia. At Bottom End 8 mm / 0.31 in.
Height Approx. 1340 mm / 52.76 in.
Weight Approx. 1.3 kg / 2.87 lb.
Mounting On 27 mm dia. mast tube (¾” water pipe)
Environmental
Operating temperature range -30 °C to +70 °C

Diagram and Mounting

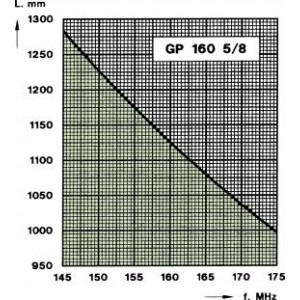

CUTTING DIAGRAM

Ordering Designations

Model Product No.
GP 160 5/8 100000108

Please Note

The length of the radiator is measured from the upper edge of the head, right above the mounting point of the radials, to the top end of the antenna element. The radials should not be cut.
