CXL 2400-3LW/...

Marine AntennasCXL 2400-3LW/...

3 dBd Omnidirectional Base Station and Marine Antenna for the 2400 MHz Band

Description

  • Vertically polarized, omnidirectional base station and marine antenna.
  • Approximately 3 dBd gain.
  • Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • To be mounted on vertical or horizontal mast tubes, 16 to
    54 mm in outer diameter.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • Large bandwidth with respect to both VSWR and gain.
  • Highly suitable for duplex operation with large spacing between the Tx and the Rx frequencies.
  • The antenna element is sealed in a high-quality, conical glass fibre tube.
  • All metal parts in the antenna are DC-grounded to reduce the noise caused by atmospherical discharge. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 2400-3LW/… is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

Specifications

Electrical
Model CXL 2400-3LW/...
Frequency Models within 2200 - 2700 MHz
Antenna Type Collinear, broad-band
Max. Input Power 100 W
Polarisation Vertical
3 dB Beamwidth, E-Plane 22 °
3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
Gain 3 dBd (5.2 dBi)
VSWR ≤ 2.0, typ. ≤ 1.5
Bandwidth For l, m and h models :
≥ 200 MHz @ VSWR ≤ 2.0:1
For ll-model :
≥ 100 MHz @ VSWR ≤ 2.0:1
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 015DE40
Mechanical
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
U-bolt and fittings : Stainless steel
Colour White (RAL 9003)
Wind Area 0.02 sq. m / 0.22 sq. ft
Wind Load 26 N (160 km/h)
Dia. At Top End 22 mm / 0.87 in.
Dia. At Bottom End 23 mm / 0.91 in.
Height Approx. 620 mm / 24.41 in.
Weight Approx. 0.6 kg / 1.32 lb.
Mounting On 16 to 54 mm dia. mast tube
Environmental
Operating temperature range -30 °C to +70 °C
Ingress Protection IP66

Diagram and Mounting

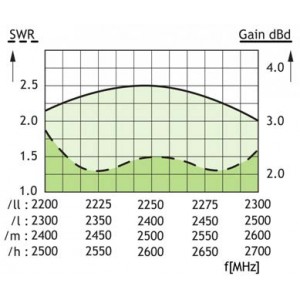

TYPICAL GAIN AND SWR CURVES

TYPICAL RADIATION PATTERN (E-PLANE)

TYPICAL RADIATION PATTERN (H-PLANE)

MULTI-PURPOSE MOUNTING BRACKET

PLEASE NOTE

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.

Ordering Designations

Model Product No. Frequency
CXL 2400-3LW/ll 100000557 2200 - 2300 MHz
CXL 2400-3LW/l 100000183 2300 - 2500 MHz
CXL 2400-3LW/m 100000169 2400 - 2600 MHz
CXL 2400-3LW/h 100000171 2500 - 2700 MHz

Please Note

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.
