CXL 1800-8C/T-6 8 dBd Omnidirectional Base Station Antenna for the 1800 MHz Band with 6° electrical

Description

  • Vertically polarized, omnidirectional base station antenna.
  • Approximately 8 dBd gain, in main slope.
  • Provided with the “C” mounting bracket – a universal fixation bracket made of epoxy-coated seawater resistant aluminium.
  • The accompanying U-bolts and fittings are made of stainless steel.
  • To be mounted on mast tubes, 27 to 65 mm in outer diameter.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • Large bandwidth with respect to both VSWR and gain.
  • Highly suitable for duplex operation with large spacing between the Tx and the Rx frequencies, e.g. the DCS-1800/PCN cellular system.
  • The antenna element is sealed in a high-quality, conical glass fibre tube.
  • All metal parts in the antenna are DC-grounded to reduce the noise caused by atmospherical discharge. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 1800-8C/T-6 is a vibration-proof, slim-line, corrosion resistant, modern style base station antenna.

Specifications

Electrical
Model CXL 1800-8C/T-6
Frequency 1710 - 1880 MHz
Antenna Type Collinear, broad-band
Max. Input Power 100 W
Polarisation Vertical
3 dB Beamwidth, E-Plane 7 °
3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
Gain 8 dBd (10.2 dBi)
VSWR ≤ 1.75, typ. ≤ 1.5
Bandwidth Approx. ≥ 200 MHz @ VSWR ≤ 1.75
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 004DE60
Mechanical
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
Clamps : Stainless steel
Colour White (RAL 9003)
Wind Area 0.04 sq. m / 0.43 sq. ft
Wind Load 51 N (160 km/h)
Dia. At Top End 20 mm / 0.79 in.
Dia. At Bottom End 23 mm / 0.91 in.
Height Approx. 1500 mm / 59.06 in.
Weight Approx. 1.5 kg / 3.31 lb.
Mounting On 27 - 65 mm / 1.06 - 2.56 in. dia. mast tube
Environmental
Operating temperature range -30 °C to +70 °C
Ingress Protection IP66

Diagram and Mounting

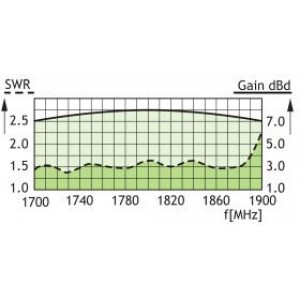

TYPICAL GAIN AND SWR CURVES

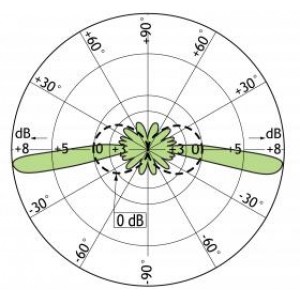

TYPICAL RADIATION PATTERN (E-PLANE)

TYPICAL RADIATION PATTERN (H-PLANE)

MULTI-PURPOSE MOUNTING BRACKET

PLEASE NOTE

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.

Ordering Designations

Model Product No.
CXL 1800-8C/T-6 100000308

Please Note

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.
