Marine AntennasCXL 900/1800/1900/UMTS/LW

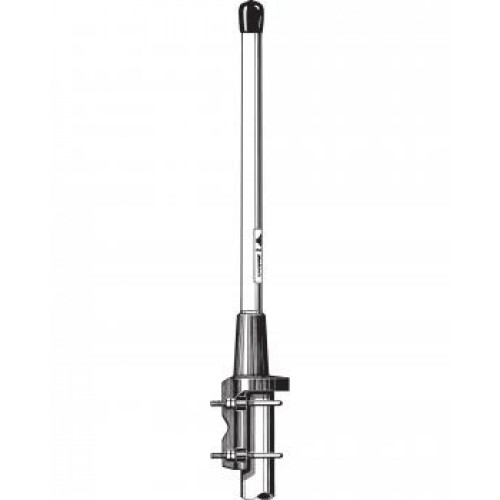

Quadruple-Band Base Station and Marine Antenna for the 900 MHz, 1800 MHz, 1900 MHz and the 2000 MHz

Description

  • Quadruple-Band base station and marine antenna – four bands with only one antenna.
  • Covering both GSM/NMT-900, DCS-1800/PCN (GSM 900/1800), PCS-1900 and UMTS.
  • Particularly suitable for use with triple-band mobile phones.
  • Unity gain on all bands.
  • Wide variety of accessory mounting brackets available.
  • The carefully designed, broad-banded antenna element is sealed in a high-quality, conical glass fibre tube with low wind-load, which will ensure performance undisturbed by corrosive environments.
  • Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • Large bandwidth with respect to both VSWR and gain.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 900/1800/1900/UMTS/LW is a vibration-proof, lightweight, slimline,
    corrosion resistant, modern style base station and marine antenna.

Specifications

Electrical
Model CXL 900/1800/1900/UMTS/LW
Frequency 800 - 960 MHz/1710 - 1880 MHz/
1850 - 1990 MHz/1900 - 2200 MHz
(GSM 900/DCS-1800/PCS-1900/UMTS)
Antenna Type Quadruple-Band base station and marine antenna
Max. Input Power 100 W
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
Gain -2.2 dBd (0 dBi)
VSWR GSM @ ≤ 2.0:1
DCS-1800 @ ≤ 2.0:1
PCS-1900 @ ≤ 3.0:1
UMTS @ ≤ 3.0:1
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 030DE00
Mechanical
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
U-bolt and fittings : Stainless steel
Colour White (RAL 9003)
Wind Area 0.018 sq. m / 0.19 sq. ft
Wind Load 23 N (160 km/h)
Dia. At Top End 21 mm / 0.83 in.
Dia. At Bottom End 23 mm / 0.91 in.
Height Approx. 500 mm / 19.69 in.
Weight Approx. 0.6 kg / 1.32 lb.
Mounting On 16 to 54 mm / 0.63 to 2.13 in. dia. mast tube
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66

Diagram and Mounting

TYPICAL RADIATION PATTERN (E-PLANE)

TYPICAL RADIATION PATTERN (H-PLANE)

MULTI-PURPOSE MOUNTING BRACKET

Ordering Designations

Model Product No.
CXL 900/1800/1900/UMTS/LW 110000229
