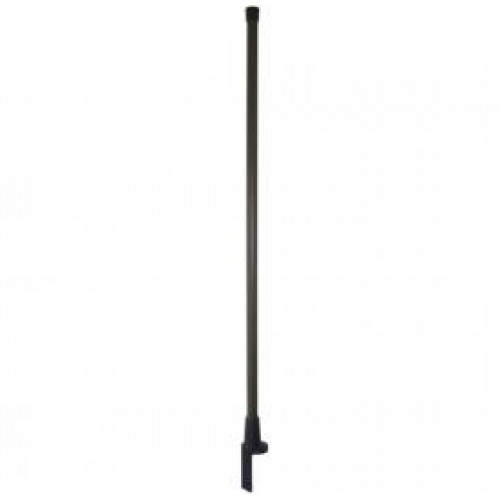

G-CXL 2-2C

Marine AntennasG-CXL 2-2C

Universal, Unity-Gain Base Station and Marine Antenna for the 160 MHz Band. Designed for defense uni

Description

  • G-CXL 2-2C is a 0 dBd gain, omnidirectional base station antenna.
    The antenna covers the complete band: 144 - 175 MHz.
  • G-CXL 2-2C is designed for fixation on supporting tubes with outer diameter between 27 mm and 65 mm.
  • The construction of the mount makes it possible to lead the cable either inside or along the outside of the mast tube.
  • A glass fibre tube completely encloses the carefully designed radiating element to ensure long dependable service in all climates.
  • Atmospherical discharges are immediately led to ground as all metal parts are DC-grounded (consequently, the antenna shows a DC-short across the coaxial cable).
  • This antenna is used where reliability is of utmost importance. A long lifetime has been taken into consideration when designing this antenna – it is sturdy and strong.

Specifications

Electrical
Model G-CXL 2-2C
Frequency Covering : 144 - 175 MHz
Antenna Type Coaxial dipole, broad-banded
Max. Input Power 600 W
Polarisation Vertical
Pattern Type Omnidirectional
3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.5:1
Bandwidth 31 MHz
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Mechanical
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mast clamp : Seawater resistant aluminium, black
Colour Green (RAL 6014)
Wind Area 0.091 sq. m / 0.98 sq. ft
Wind Load 115 N (160 km/h)
Height Approx. 1750 mm / 68.90 in.
Weight Approx. 3.0 kg / 6.61 lb.
Mounting On 27 - 65 mm / 1.06 - 2.56 in. dia. mast tube
Environmental
Ingress Protection IP56

Diagram and Mounting

TYPICAL GAIN AND SWR CURVES

TYPICAL RADIATION PATTERN 144 MHz (E-PLANE)

TYPICAL RADIATION PATTERN 158 MHz (E-PLANE)

TYPICAL RADIATION PATTERN 175 MHz (E-PLANE)

TYPICAL RADIATION PATTERN 175 MHz (H-PLANE)

MULTI-PURPOSE MOUNTING BRACKET

PLEASE NOTE

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.

Ordering Designations

Model Product No.
G-CXL 2-2C 100000267

Please Note

The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.
