- This antenna provides a very efficient means of establishing a universal, wide-band 50 Ω receiving aerial system for the complete LF, MF and HF bands in one unit.
- The antenna consists of a high-capacitance, 5 m long glass fibre antenna element with a frequency-compensated wide-band impedance transformer mounted in the bottom end.
- The transformer converts the widely varying antenna impedance to a constant 50 Ω, making it possible to use length-independent, shielded, standard RG 58 C/U or RG 213/U as downlead cable to the 50 Ω receiver.
- The antenna is protected against noise pick-up running on the outside of the downlead cable, and it is protected against static by DC-grounding.
- Moreover, the 50 Ω receiver and the matching transformer itself are protected against RF overload and violent discharges by an air spark gap (approx. 1 kV), a gas filled spark gap (90 V) and a resistance network.
- To prevent electrolytical corrosion, the coaxial cable braid is only capacitively coupled to the earth connection.
- Installation is easily carried out by means of the two hot galvanized mast clamps. The antenna has very small weight and minimum wind surface, thereby requiring only a minimum of mast strength.
- The glass fibre construction gives a stiff and self-supporting structure with extremely good resistance against the corrosive marine environment with UV-radiation, salt, exhaust gases and ice formation as primary factors.
- RX 5000 is a maintenance-free and very reliable construction.
HF AntennasRX 5000
Self-Supporting Wide-Band Receiving Whip Antenna for the LF, MF and HF Bands.
Description
Specifications
| Electrical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Environmental | ||
|---|---|---|
|
||
|
||
Ordering Designations
| Model | Product No. | |
|---|---|---|
| RX 5000 | 110000111 |

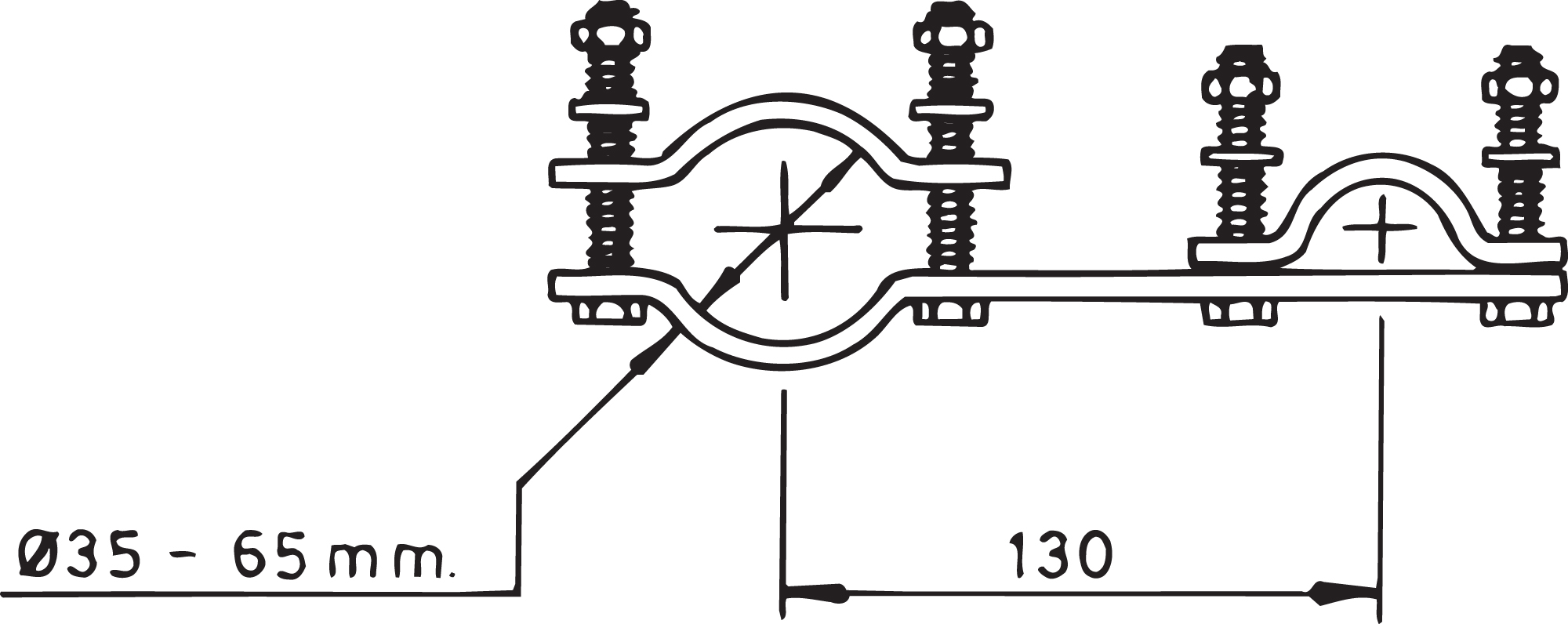

Clamp Details
