- CXL 3-1 is a 0 dBd, vertically polarized, omnidirectional base station antenna for the 118 - 137 MHz civil aircraft band.
- The antenna is a broad-banded ½ λ dipole design.
- The antenna can be mounted on threaded 1" water pipe using the supplied 1" revolving nut. In this way, a nice, slim installation is obtained.
- A wide variety of accessory mounting hardware (see accessories) gives ample choice regarding alternative ways of installation.
- To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
- A conical glass fibre tube with very low wind-loading completely encloses the carefully designed radiating element to ensure long dependable service in all climates.
Air-Ground-Air AntennaCXL 3-1
Unity-Gain, Omnidirectional Base Station Antenna for the International Aircraft Band
Description
Specifications
| Electrical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Environmental | ||
|---|---|---|
|
||
|
||
Diagram and Mounting
ACCESSORIES (to be ordered separately)

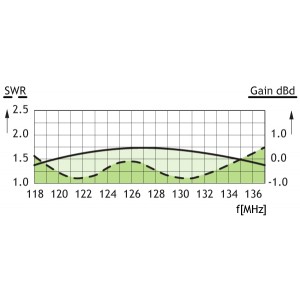

TYPICAL GAIN AND SWR CURVES
TYPICAL RADIATION PATTERN (E-PLANE)
TYPICAL RADIATION PATTERN (H-PLANE)
Ordering Designations
| Model | Product No. | Description | |
|---|---|---|---|
| CXL 3-1 | 100000068 | UHF(f) | |
| CXL 3-1-N | 100000070 | N(f) |
