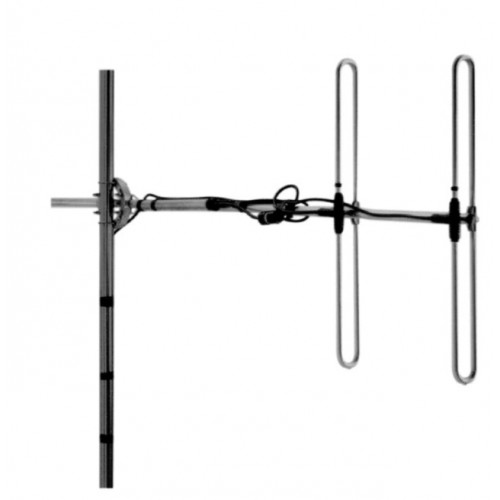

A linear array of two VHF dipole elements with phasing harness mounted on an aluminium boom. Careful attention to element phasing results in a “Cardiod” shaped radiation pattern with high F/B ratio compared to an equivalent sized Yagi antenna. Antennas of this type find use in PMR/Trunked Radio and Broadcast applications needing very high F/B performance. Produced to the highest quality standards, these robust antenna designs will insure reliable operation in harsh environmental conditions.
• Former Jaybeam brand product.
Description
Specifications
| Electrical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||

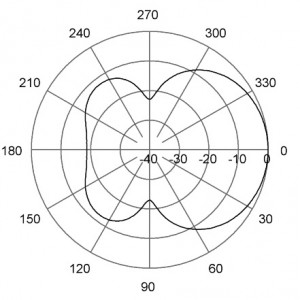

E-Plane | 182 MHz

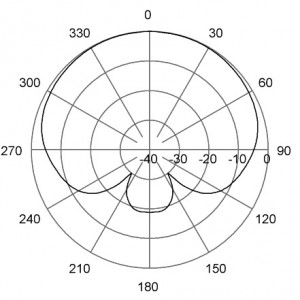

H-Plane | 182 MHz Ordering Designations
| Model | Product No. | Frequency | |
|---|---|---|---|
| Cardioid array 177-186 MHz | 7170181 | 177 - 186 MHz | |
| Accessories | |||
| Galvanised steel crossover bracket 32/50mm | 0900912/00 | ||
| Pressed steel cross clamp 2" x 1-1/4" (JBL73) | 0302032/68 | ||
| Cast aluminium cross clamp, circular | 0300064/00 | ||
| M8 x 50mm (2") U-Bolts (1 Pair) | 4884036/00 | ||
| M8 x 75mm (3") U-Bolts (1 Pair) | 4884076/00 | ||
| Fixed norstel / coupler clamp (cross clamp) | 3202078/68 | ||
| Increasing sleeve | 3201079/00 | ||
