CXL 1800-3

Marine AntennasCXL 1800-3

3 dBd Omnidirectional Base Station and Marine Antenna for the 1800 MHz Band

Description

  • Vertically polarized, omnidirectional base station and marine antenna.
  • Approximately 3 dBd gain.
  • Simple mounting using the 1” revolving nut system.
  • Wide variety of accessory mounting brackets available.
  • Large bandwidth with respect to both VSWR and gain.
  • Highly suitable for duplex operation with large spacing between the Tx and the Rx frequencies, e.g. the DCS-1800/PCN cellular system.
  • The antenna element is sealed in a high-quality, glass fibre tube.
  • All metal parts in the antenna are DC-grounded to reduce the noise caused by atmospherical discharge. Consequently, the antenna shows a DC-short across the coaxial cable.
  • The CXL 1800-3 is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

Specifications

Electrical
Model CXL 1800-3
Frequency 1710 - 1880 MHz
Antenna Type Collinear, broad-band
Max. Input Power 100 W
Polarisation Vertical
3 dB Beamwidth, E-Plane 39 °
3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
Gain 3 dBd (5.2 dBi)
VSWR < 2.0:1
Bandwidth ≥ 170 MHz @ VSWR ≤ 2.0
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
HCM Code(s) HCM000ND00, 019DE25
Mechanical
Connection(s) N(f)
Materials Shroud : Polyurethane-coated glass fibre
Mounting bracket : Chromed brass
Colour White (RAL 9003)
Wind Area 0.013 sq. m / 0.14 sq. ft
Wind Load 15 N (160 km/h)
Dia. At Top End 23 mm / 0.91 in.
Dia. At Bottom End 23 mm / 0.91 in.
Height Approx. 530 mm / 20.87 in.
Weight Approx. 0.35 kg / 0.77 lb.

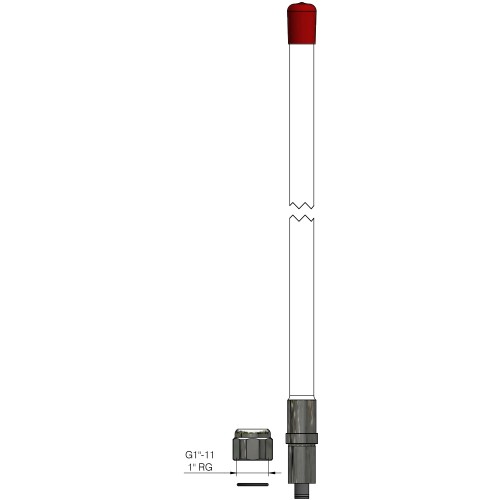

Mounting On 1" RG (G1" - 11) threaded water pipe or on optional mounting brackets (see accessories )
Environmental
Operating temperature range -30 °C to +70 °C
Survival Wind Speed 200 km/h
Ingress Protection IP66

Ordering Designations

Model Product No.
CXL 1800-3 100000712
